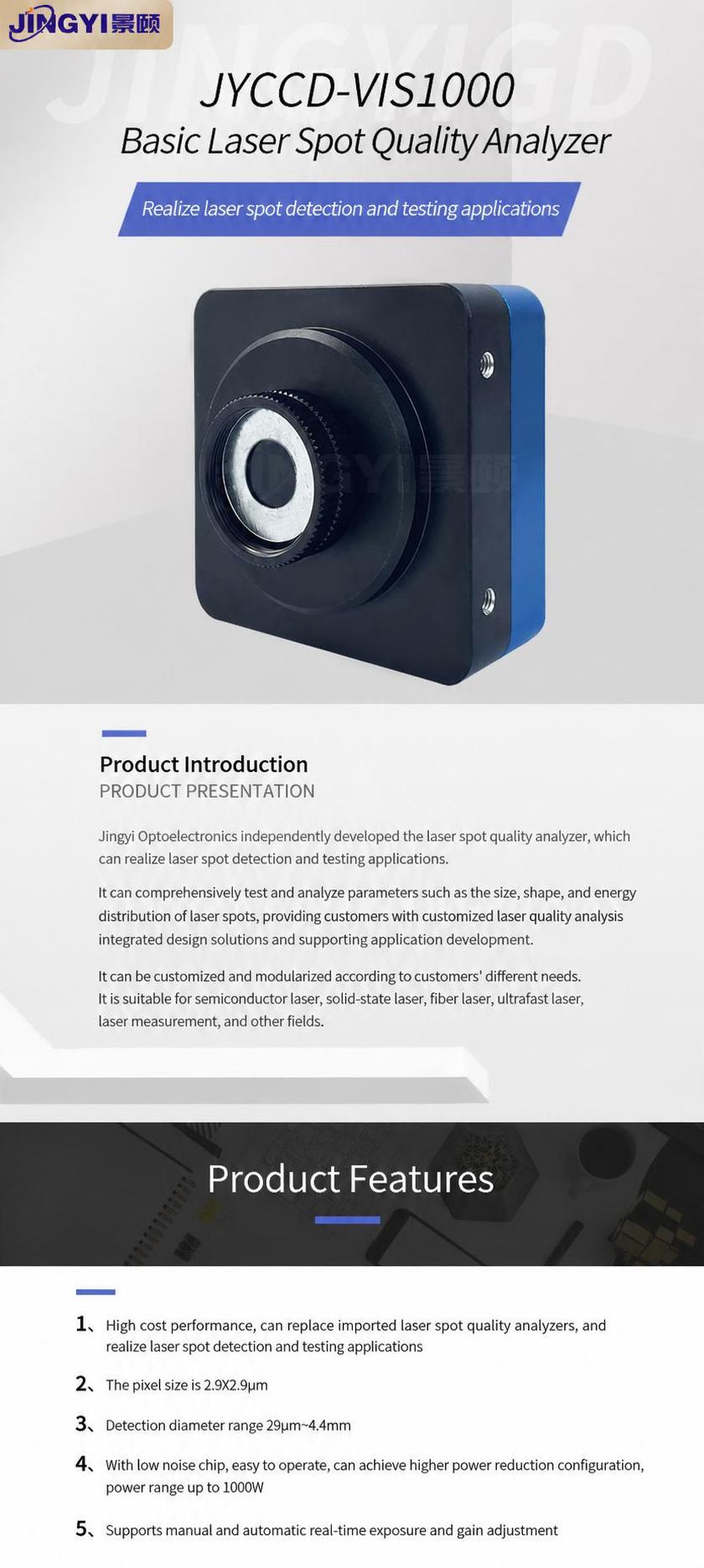

Product Overview
The Economical Target Plane Beam Quality Analyzer, independently developed by Jingyi Optoelectronics, can perform laser spot detection and testing applications. It provides comprehensive testing and analysis of parameters such as laser beam size, shape, and energy distribution, offering customers customized integrated design solutions for beam quality analysis, while supporting multiple application developments. Modular customization can be performed according to different customer requirements. It is suitable for semiconductor lasers, solid-state lasers, fiber lasers, ultrafast lasers, laser ranging, and other fields.
Performance Features
High cost-performance ratio, capable of replacing imported laser beam quality analyzers, achieving laser spot detection and testing applications.
The product has a pixel size of 5.86 µm.
Spot detection diameter range: 58.6 µm–7 mm.
Equipped with standard attenuating plates for convenient operation, with optional higher power attenuation configuration, supporting power up to 1000W.
Supports manual and automatic real-time exposure and gain adjustment.
Main Measurement Functions
Spot diameter (long axis/short axis, X/Y directions)
Ellipticity, Gaussian fitting degree
Energy distribution, beam position, divergence angle
Pass/Fail settings
High-speed, high-resolution 2D and 3D pseudo-color beam profile display
Real-time pseudo-color 2D display of the laser spot, Gaussian curve display of long/short axes
Supports control of camera exposure, gain, and resolution
Supports statistical analysis of parameters
Records and exports parameters or generates reports
Reads spot images and measures parameters
Multiple selectable image saving functions
Supports USB3.0 interface
Graphical user interface, easy to operate, freely adjustable settings
Customizable expansion functions

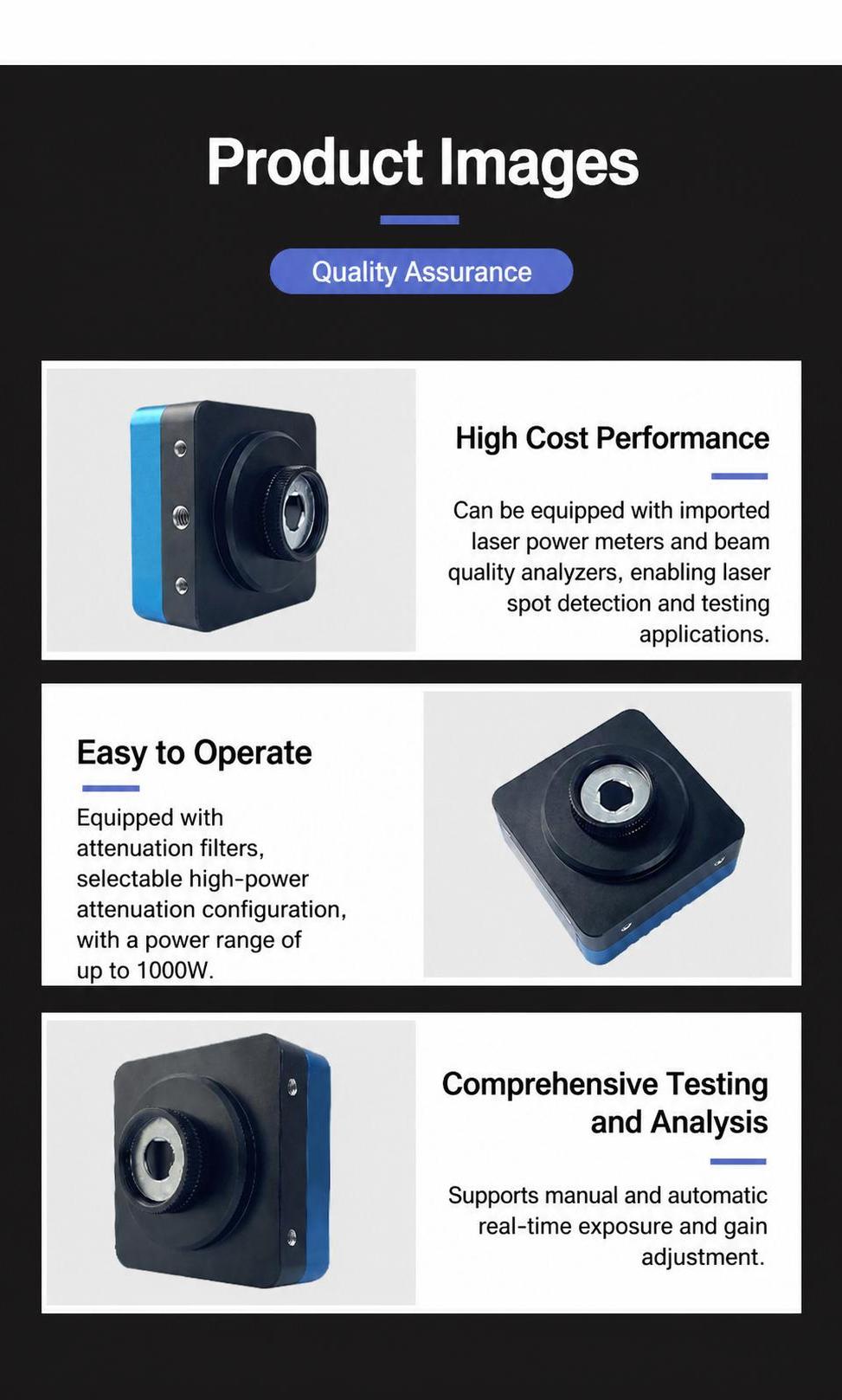

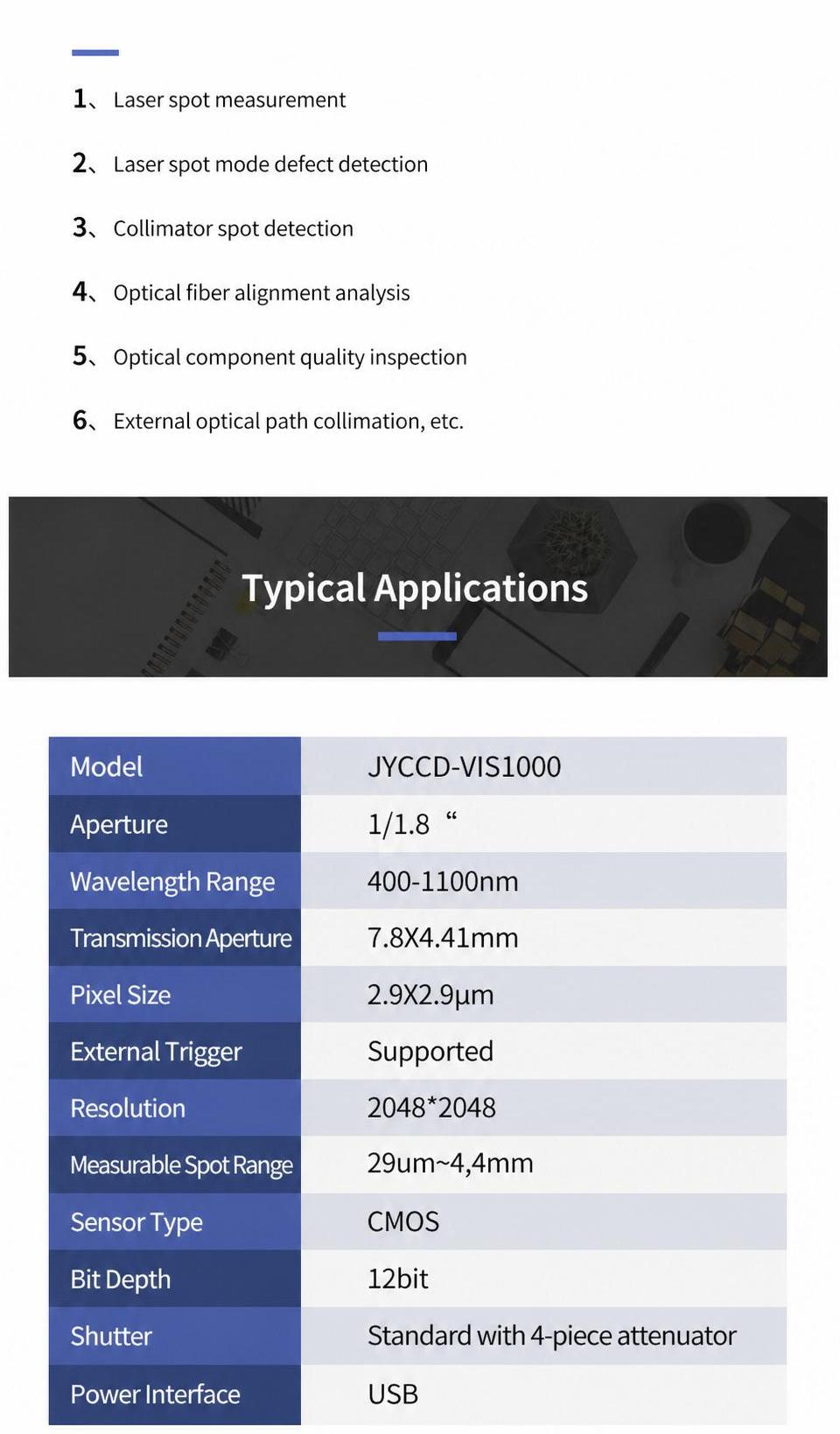

Typical Applications
Laser spot measurement
Laser spot mode defect detection
Collimator spot detection
Fiber alignment and coupling analysis
Optical component quality inspection
External optical path collimation, etc.
Product Parameters
|
Model
|
JYCCD-66UV
|
JYCCD-70VIS
|
JYCCD-10UV
|
|
Wavelength Range
|
350-1100nm
|
400-1000nm
|
300-1100nm
|
|
Photosensitive Area
|
9.8×6.6mm
|
11.25×7mm
|
14.12×10.35mm
|
|
Measurable Size
|
34.5um-6.6mm
|
58.6um-7mm
|
34.5um-10.3mm
|
|
Pixel Size
|
3.4um
|
5.86 µm
|
3.45 µm
|
|
Resolution
|
2448x2048
|
1920 × 1200
|
4096 × 3000
|
|
Bit Depth
|
12bit
|
12bit
|
12bit
|
|
Frame Rate
|
24.2 fps
|
41 fps
|
7.25 fps
|
|
Exposure Time
|
2 μs ~ 10 sec
|
15 μs ~ 10 sec
|
12 μs ~ 10 sec
|
|
Gain
|
0 dB ~ 24 dB
|
0 dB ~ 24 dB
|
6 ~ 14 dB
|
|
Trigger
|
Soft trigger/hard trigger optional
|
Soft trigger/hard trigger optional
|
Soft trigger/hard trigger optional
|
|
Operating Temperature
|
-30°C ~ 60°C
|
-30°C ~ 60°C
|
0 ~ 50°C
|
|
Dimensions (L*W*H)
|
29×29×42 mm
|
29×29×42 mm
|
29×44×59 mm
|
|
Operating Mode
|
Global shutter
|
Global shutter
|
Global shutter
|
|
Computer Interface
|
Gigabit Ethernet (GigE)
|
Gigabit Ethernet (GigE)
|
Gigabit Ethernet (GigE)
|
|
IP Protection Rating
|
IP40
|
IP40
|
IP40
|
|
Temperature
|
Operating temperature 0 ~ 50°C, storage temperature -30 ~ 80°C
|
Operating temperature 0 ~ 50°C, storage temperature -30 ~ 80°C
|
Operating temperature 0 ~ 50°C, storage temperature -30 ~ 80°C
|
|
Humidity
|
20% ~ 95% RH non-condensing
|
20% ~ 95% RH non-condensing
|
20% ~ 95% RH non-condensing
|
|
Operating System
|
Windows、Linux
|
Windows、Linux
|
Windows、Linux
|
|
Certification
|
CE,RoHS,KC
|
CE,RoHS,KC
|
CE,RoHS,KC
|
*The final right of interpretation of this technical specification belongs to the manufacturer.
Consult customer service to obtain detailed materials and exclusive solutions.
