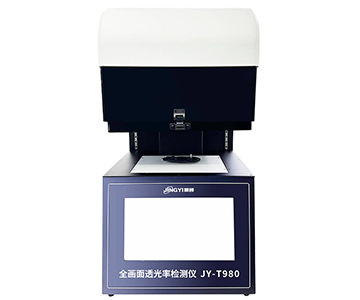

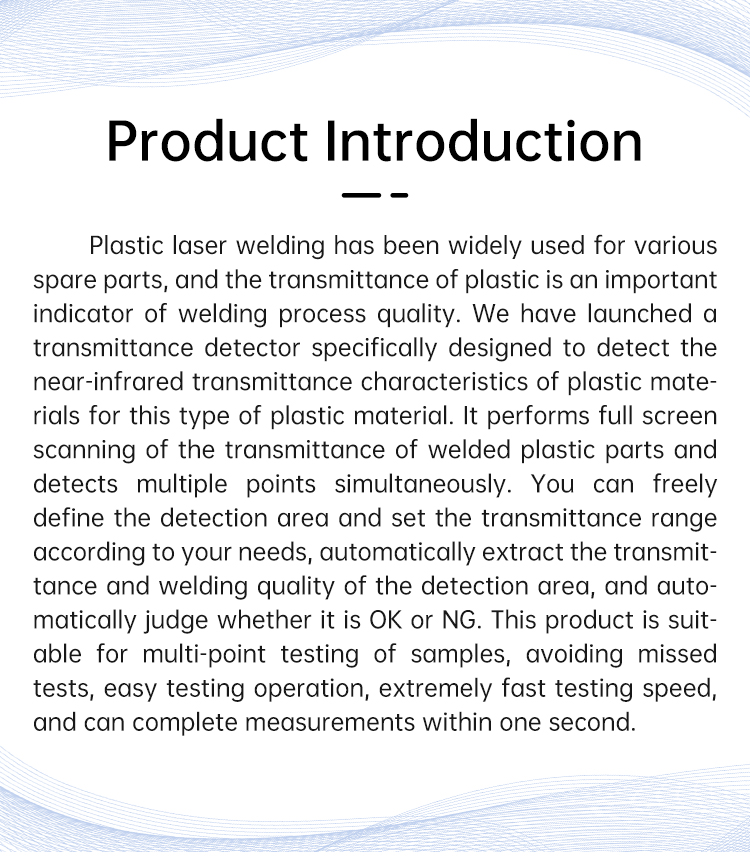

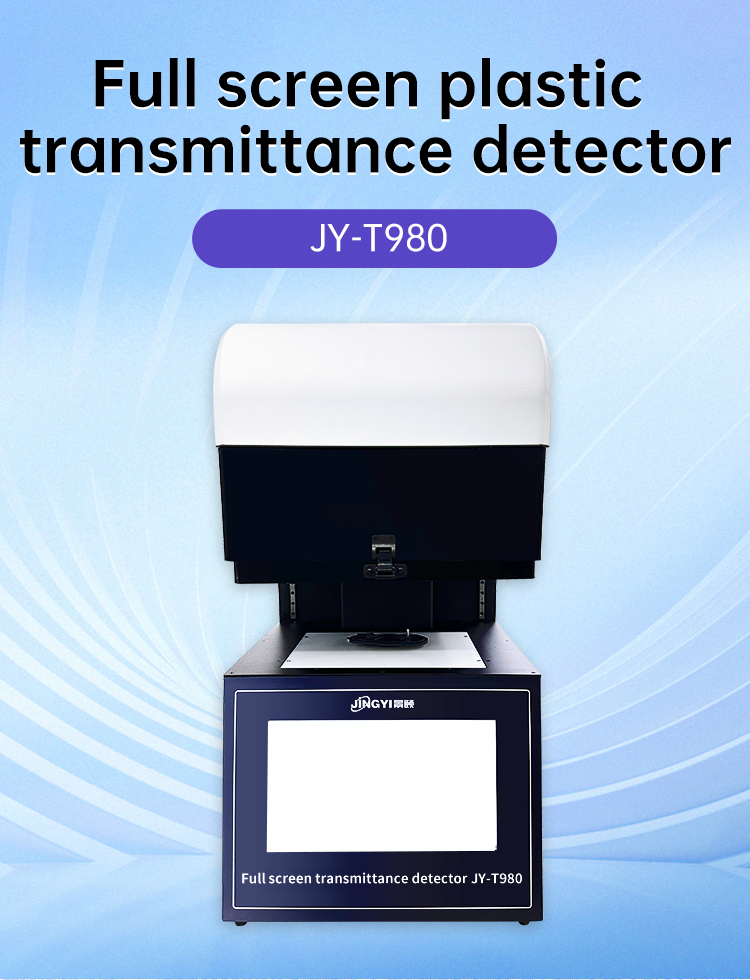

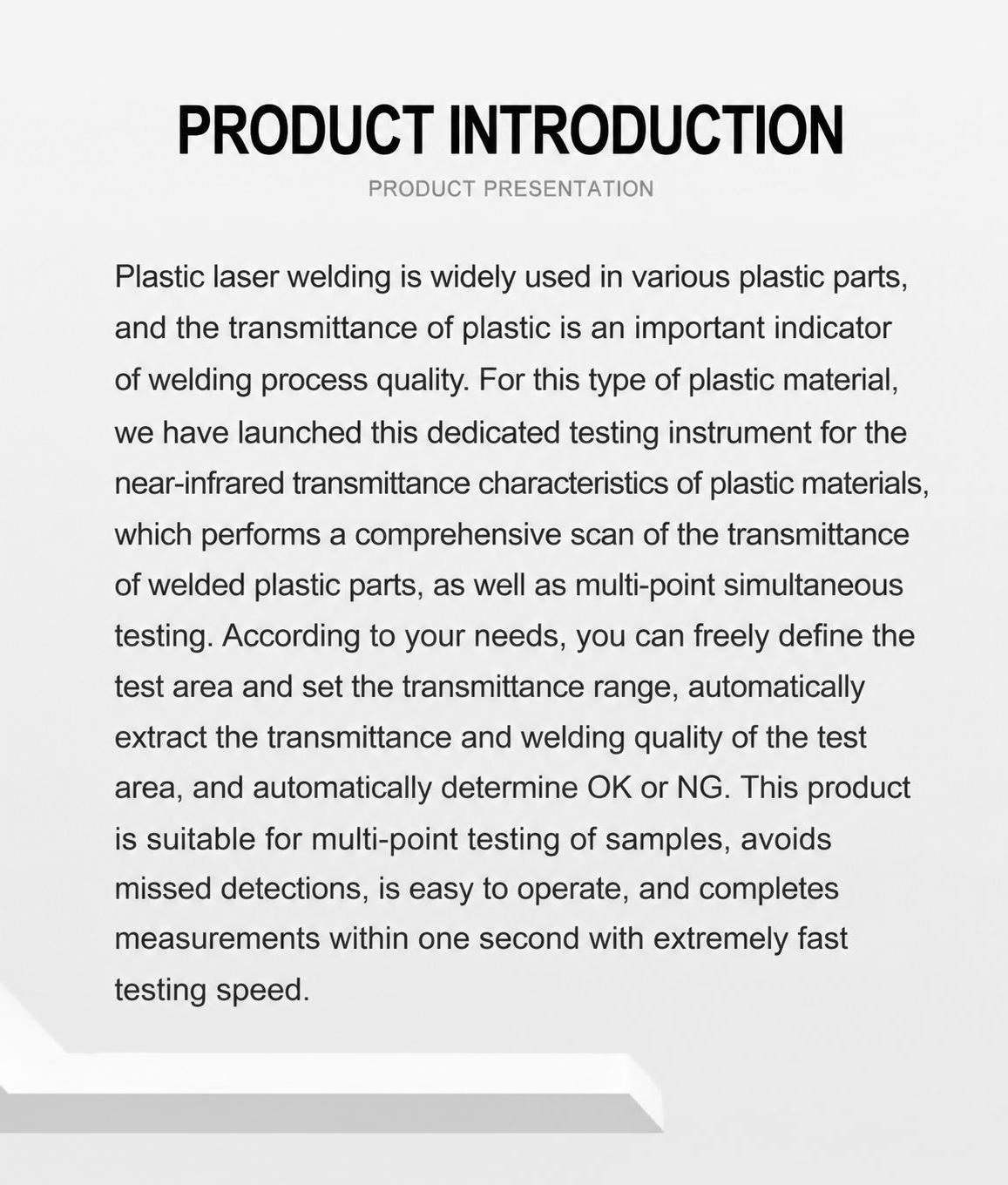

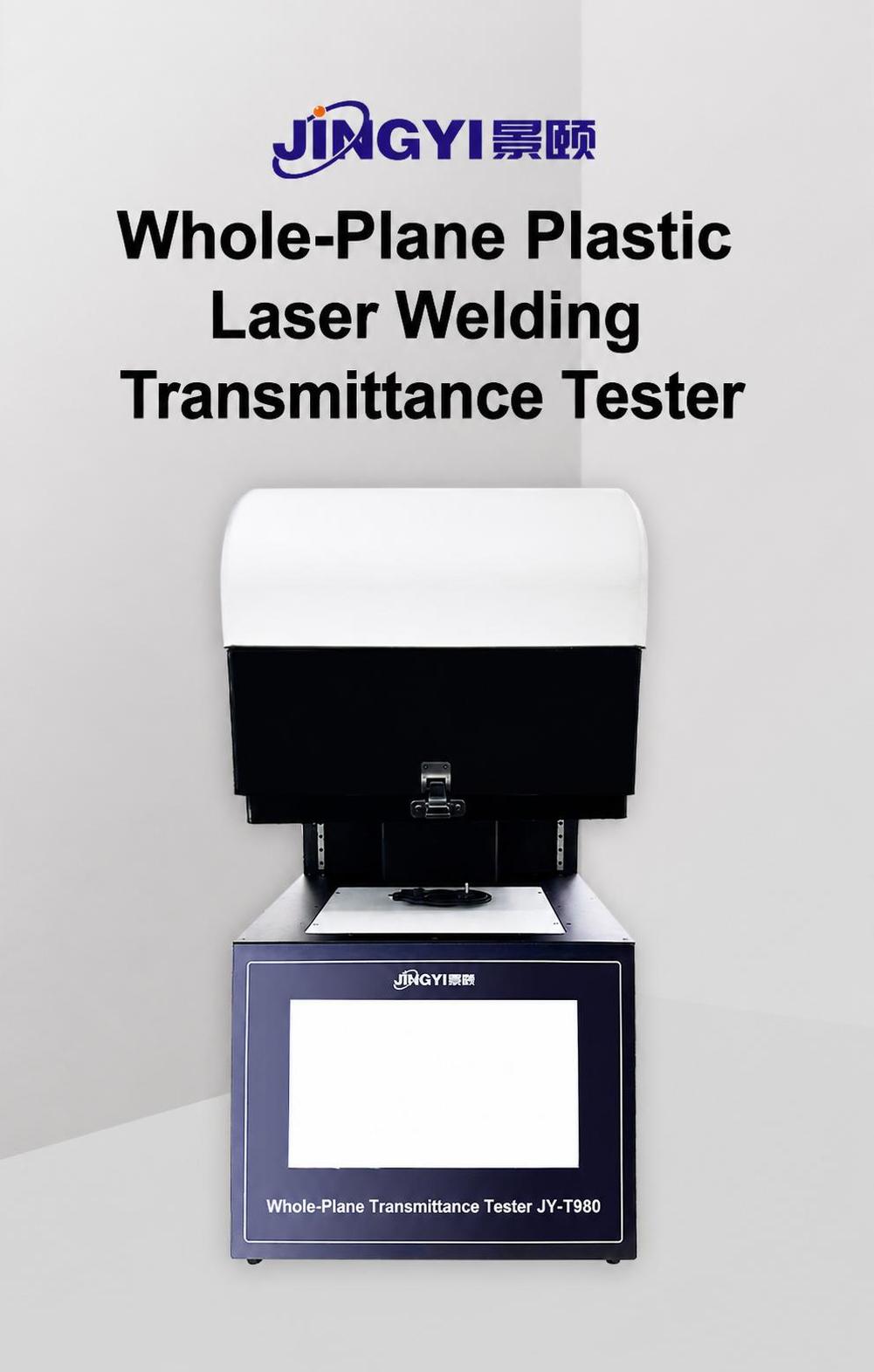

Product Introduction
Plastic laser welding has become widely used in various components, and the light transmittance of plastic is an important indicator of welding process quality. To address this type of plastic material, this light transmittance tester is specifically designed to detect the near-infrared light transmittance characteristics of plastic materials. It performs full-frame scanning of the transmittance of welded plastic parts, detecting multiple points simultaneously. Users can freely define the detection area and set the transmittance range as needed. The device automatically extracts the transmittance and welding quality of the detection area and automatically determines OK or NG. This product is suitable for multi-point testing of samples, preventing missed measurements, offering easy test operation, and extremely fast testing speed, completing the measurement in less than one second.
Product Features
- Certified by authoritative institutions
- Proven in the market and recognized by the industry
- Uses a light source in the same wavelength band as plastic welding equipment to comprehensively test the transmittance of plastic parts. Light source peak wavelength: 980nm (other wavelengths can be selected based on requirements)
- Fast testing speed, detection time ≤1 second

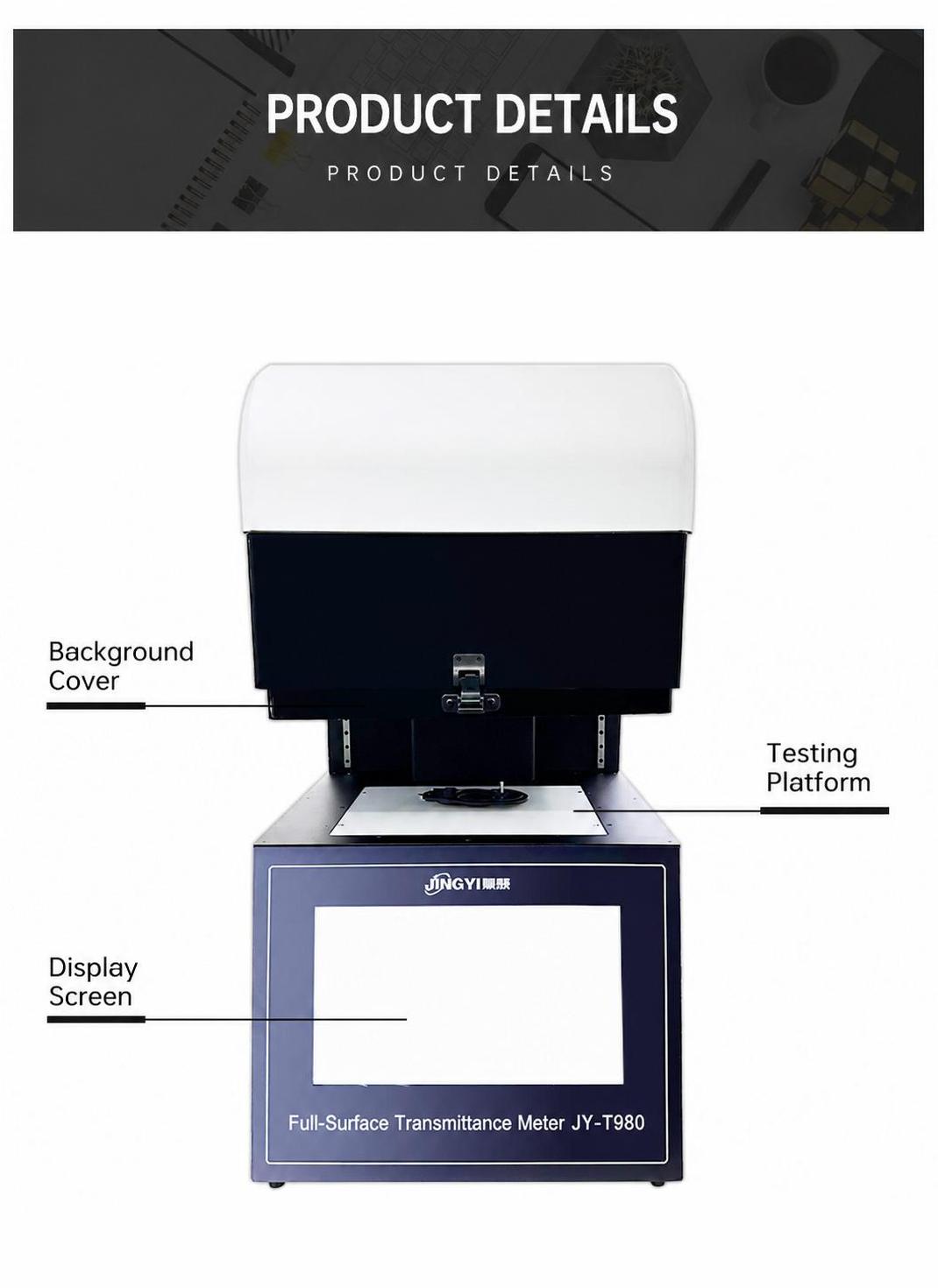

- Automatic sample positioning; simply place the sample on the testing platform for easy operation
- Supports multi-point simultaneous detection or surface detection, with measurement methods customizable by the user
- Users can freely define detection areas and transmittance ranges, with automatic OK/NG determination and alarm notification
- Automatically calculates the transmittance values of each marked testing area and computes the average, maximum, and minimum values for multiple testing areas. The testing interface marks the corresponding numbers of the tested areas
- Capable of producing test data reports

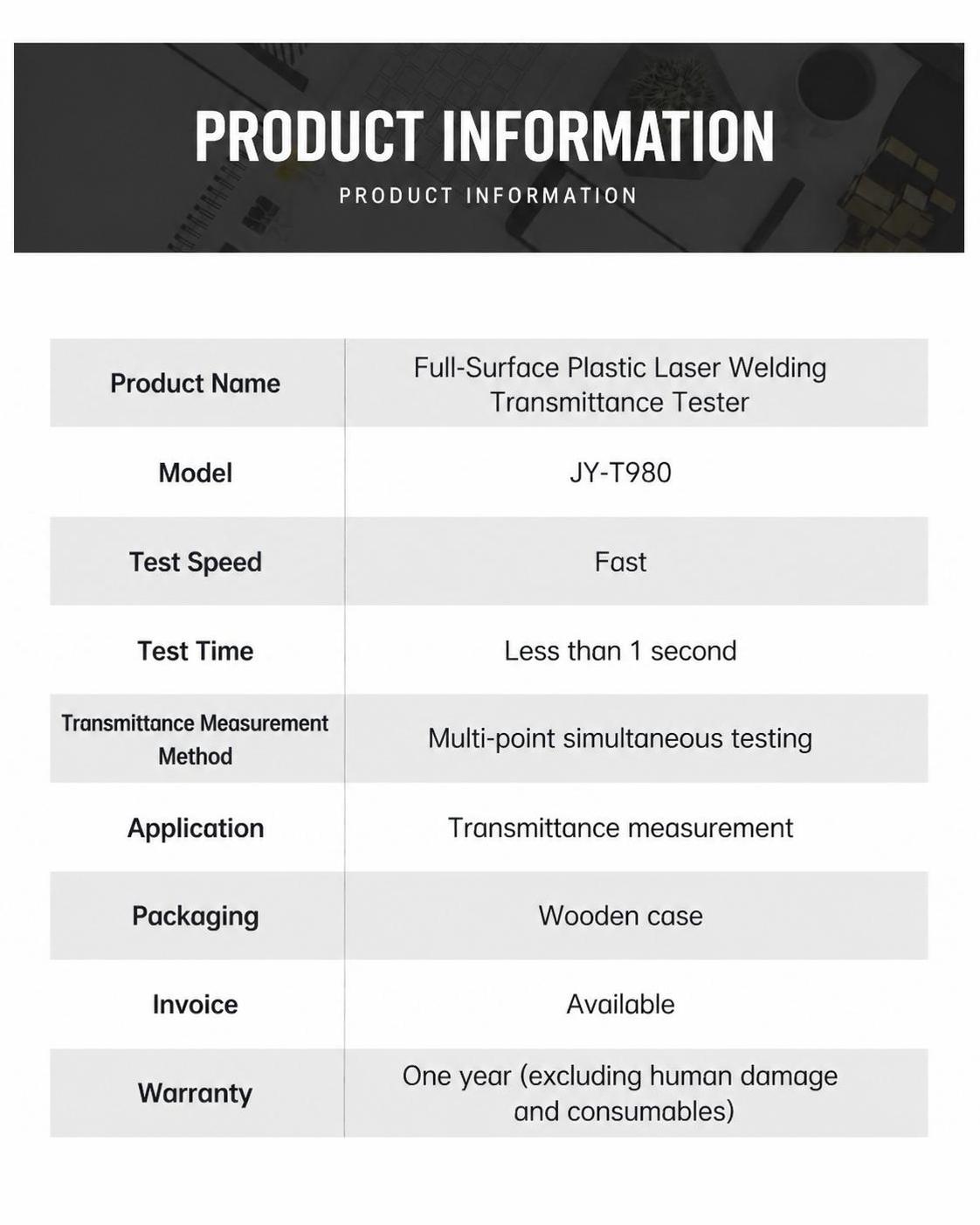

Product Specifications
|
Project
|
Specifications
|
|

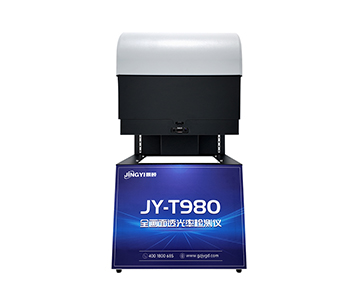

Model
|
JY-T980
|
|
Wavelength
|
Selectable wavelengths: 850nm, 905nm, 915nm, 940nm, 980nm
|
|
Transmittance Range
|
0-100%
|
|
Single Test Time
|
Better than 1 second
|
|
Measurement Repeatability
|
<1%
|
|
Detection Limit Accuracy
|
0.01%
|
|
Transmittance Measurement Method
|
Comprehensive multi-point simultaneous detection
|
|
Measurement Method
|
Vertical illumination
|
|
Calibration Method
|
Automatic calibration
|
|
Measurable Parameters
|
Multi-point transmittance, maximum, minimum, average, transmittance over time curve, welding quality inspection
|
|
Computer
|
Built-in industrial-grade tablet
|
|
Computer Operating System
|
Windows 7/Windows 10
|
The final interpretation of this technical specification shall be vested in the manufacturer.
Consult customer service to obtain detailed materials and exclusive solutions.
