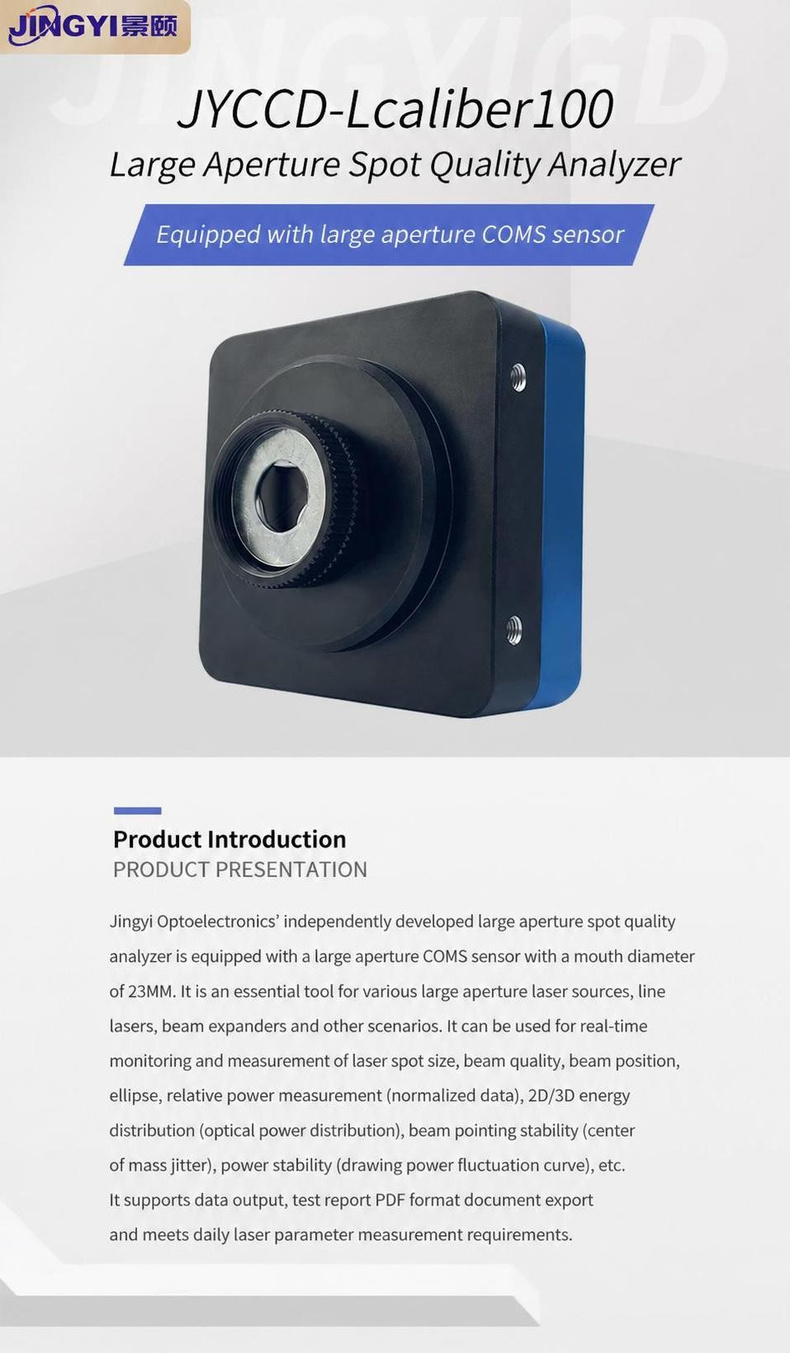

Product Overview
The large-aperture beam quality analyzer independently developed by Jingyi Optoelectronics uses a large-aperture CMOS sensor, with a camera aperture of up to 23mm. It is an essential tool for measuring various large spot lasers, line lasers, and far-field lasers with large divergence angles. It can be used for real-time beam monitoring, measuring laser spot size, centroid position, ellipticity, relative power measurement (normalized data), 2D/3D energy distribution (intensity distribution), beam pointing stability (centroid jitter), and power stability (plotting power fluctuation curves). It supports exporting measurement data and PDF-format test reports, meeting the daily laser parameter measurement requirements.

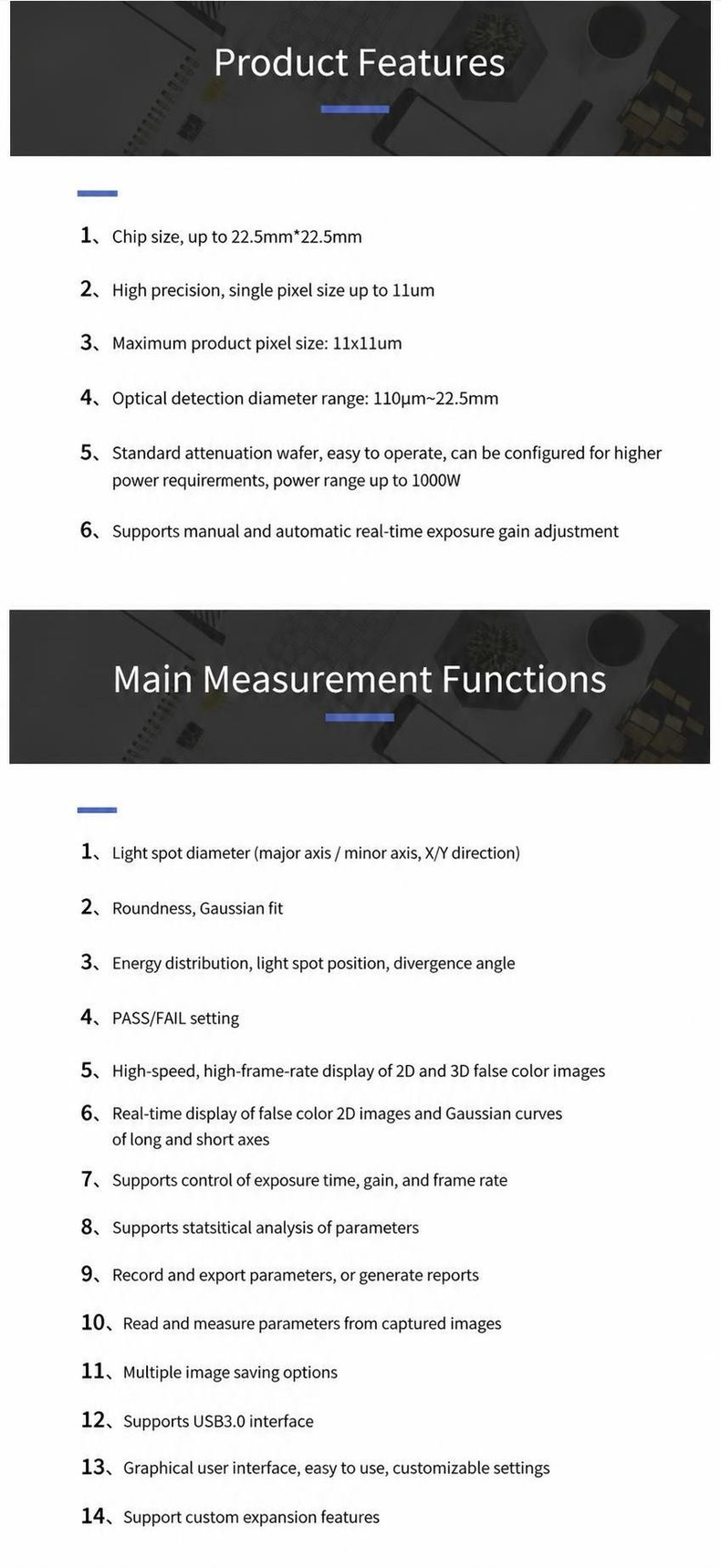

Performance Features
Large chip size, up to 22.4 mm × 22.4 mm
High accuracy, single pixel size up to 3.2 µm
Pixel size of this product: 3.2 µm × 3.2 µm
Spot detection diameter range: 32 µm - 22.4 mm
Standard with attenuation plates for easy operation, optional higher power attenuation configuration, power range up to 1000W
Supports manual, automatic, and one-click exposure modes
Main Measurement Functions
Spot diameter (major/minor axis, X/Y direction)
Ellipticity, Gaussian fit degree
Energy distribution, beam position, divergence
Pass/Fail setting
High-speed, high-resolution 2D and 3D pseudo-color beam profile display
Real-time pseudo-color 2D display of the spot, Gaussian curve display of major and minor axes
Support for controlling camera exposure, gain, and resolution
Support for statistical analysis of parameters
Record and export parameters or generate reports
Read spot images and measure parameters
Multiple image saving options
Supports USB3.0 interface
Graphical interface, easy to use, freely configurable
Customizable extension functions

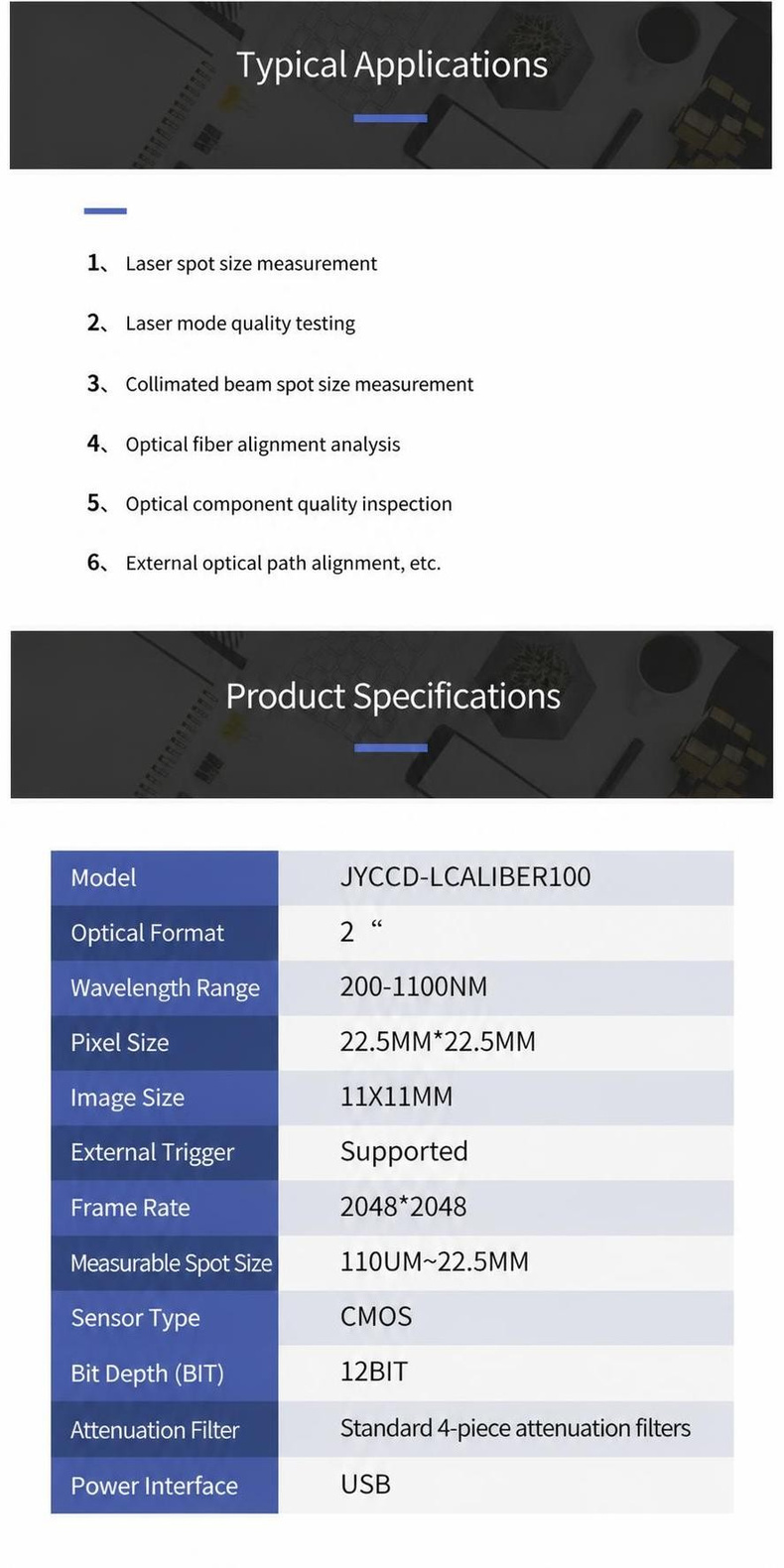

Typical Applications
Laser spot measurement
Laser beam mode defect detection
Collimator spot inspection
Optical fiber alignment coupling analysis
Optical component quality inspection
External optical path alignment
Product Specifications
|
Model
|
JYCCD-128UV
|
JYCCD-224UV
|
|
Wavelength Range
|
300-1100nm
|
350-1100nm
|
|
Sensitive Area
|
12.8 mm × 12.8 mm
|
22.4 mm × 22.4 mm
|
|
Resolution
|
5120 × 5120
|
7008 × 7000
|
|
Pixel Size
|
2.5 µm × 2.5 µm
|
3.2 µm × 3.2 µm
|
|
Measurable Spot Size
|
25um-12.8mm
|
32um-22.4mm
|
|
Bit Depth
|
12bit
|
12bit
|
|
Frame Rate
|
4.5 fps
|
23.3 fps
|
|
Exposure Time
|
12 μs ~ 10 sec
|
18 μs ~ 10 sec
|
|
Gain
|
2.0×, 2.5×, 3.0×, 3.5×, 4.0×, 4.5×, 5.0×
|
1.25x ~ 6x
|
|
Shutter Type
|
Supports automatic exposure, manual exposure, and one-touch exposure modes.
|
Supports automatic exposure, manual exposure, and one-touch exposure modes
|
|
Trigger Mode
|
Soft trigger / hard trigger selectable.
|
Soft trigger/hard trigger selectable
|
|
Operating Temperature
|
0~50°C.
|
0~50°C
|
|
Computer Interface
|
Network port.
|
Network port
|
|
Dimensions
|
29 mm × 44 mm × 59 mm.
|
M58 port with fan: 74 mm × 74 mm × 78.8 mm
|
|
Weight
|
Approximately 100 g.
|
F port with fan: 74 mm × 74 mm × 84.8 mm
|
|
IP Protection Rating
|
IP40.
|
M58 port with fan: approximately 550g
|
|
Temperature
|
Operating temperature 0~50°C, storage temperature -30~80°C.
|
F port with fan: approximately 600g
|
|
Humidity
|
20% ~ 95% RH non-condensing.
|
IP40
|
|
Operating System
|
Windows、Linux
|
Windows、Linux
|
|
Certification
|
CE,RoHS,KC
|
CE,RoHS,KC
|
*The final right of interpretation of this technical specification belongs to the manufacturer.
Consult customer service to obtain detailed materials and exclusive solutions.
