Product Overview

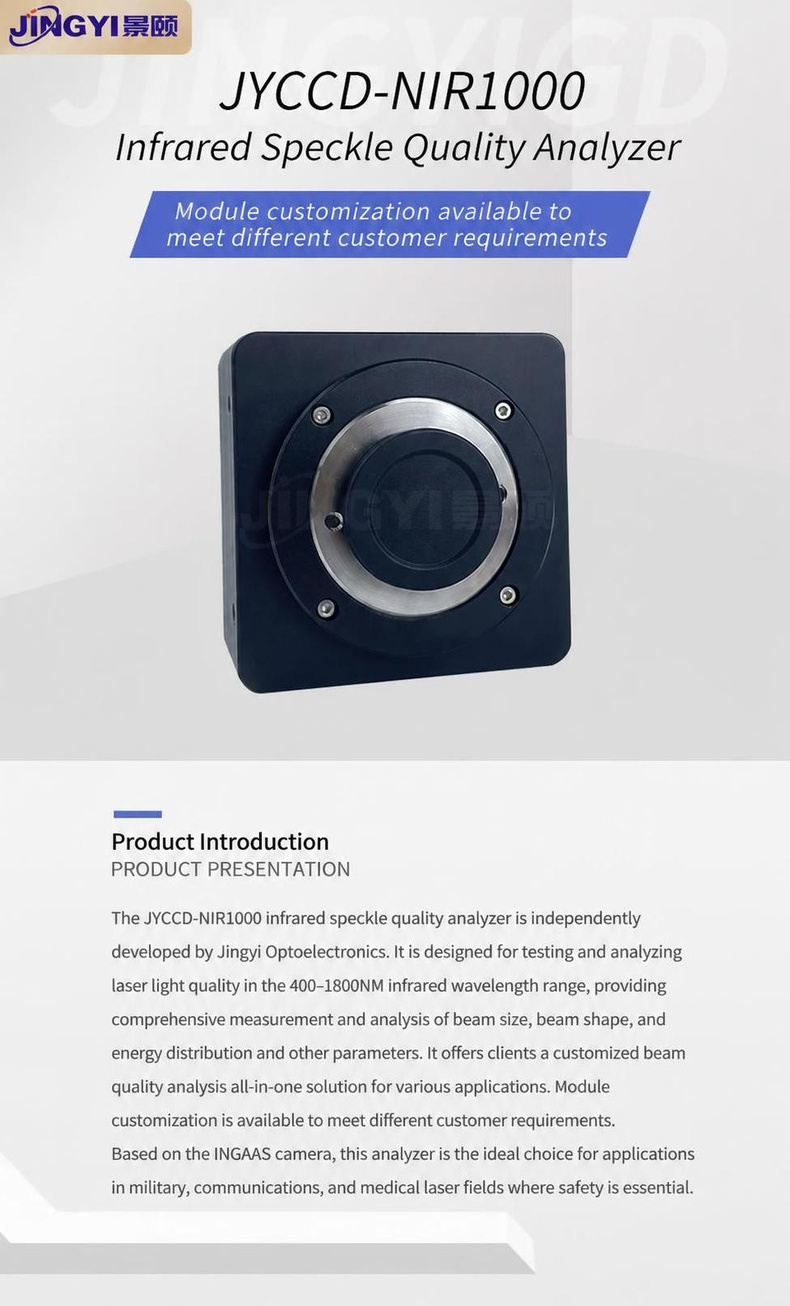

The near-infrared spot quality analyzer independently developed by Jingyi Optoelectronics can detect and analyze laser spots in the 400-1700nm infrared range. It provides comprehensive testing and analysis of parameters such as laser beam size, shape, and energy distribution, offering customers customized integrated beam quality analysis solutions and supporting multi-application development. Modular customization is available based on different customer requirements. The InGaAs camera-based spot analyzer is an ideal choice for military, communication, and medical laser applications where eye safety is a priority.



Performance Features

InGaAs Infrared Camera Performance

Accuracy compliant with ISO standards

Pixel size of this product: 5.0 μm × 5.0 μm

Spot detection diameter range: 50 μm - 2.5 mm

Standard attenuation plates for convenient operation; optional higher power attenuation configuration available, with power up to 1000W

Supports manual and automatic real-time exposure and gain adjustment

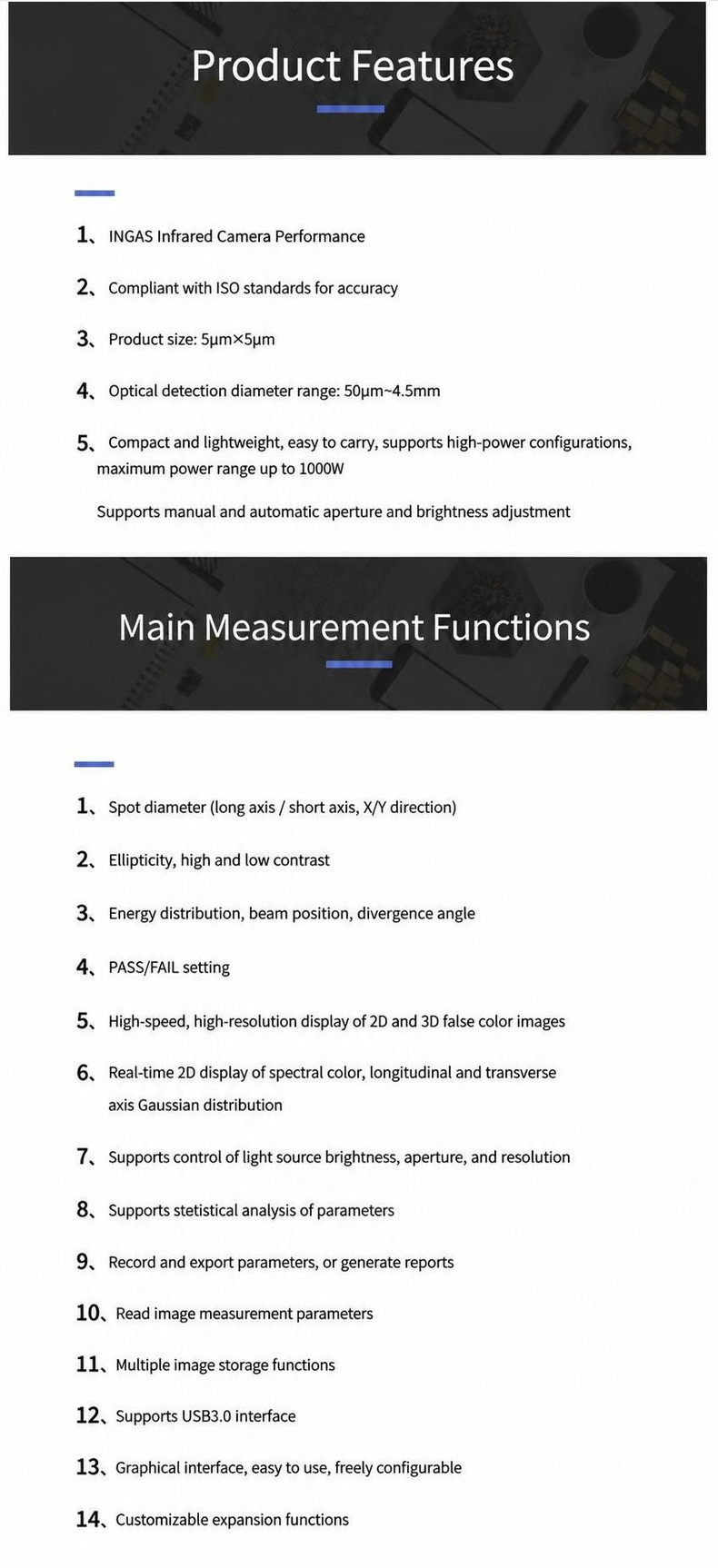

Main Measurement Functions

Spot diameter (major/minor axis, X/Y direction)

Ellipticity, Gaussian fit

Energy distribution, beam position, divergence angle

Pass/Fail setting

High-speed, high-resolution 2D and 3D pseudo-color beam profile display

Real-time pseudo-color 2D display of spots, Gaussian curve display for major and minor axes

Supports control of camera exposure, gain, and resolution

Supports statistical analysis of parameters

Record and export parameters, or generate reports

Read spot images and measure parameters

Multiple image saving options

Support for USB3.0 interface

Graphical user interface, easy to operate, freely configurable

Customizable extended functions

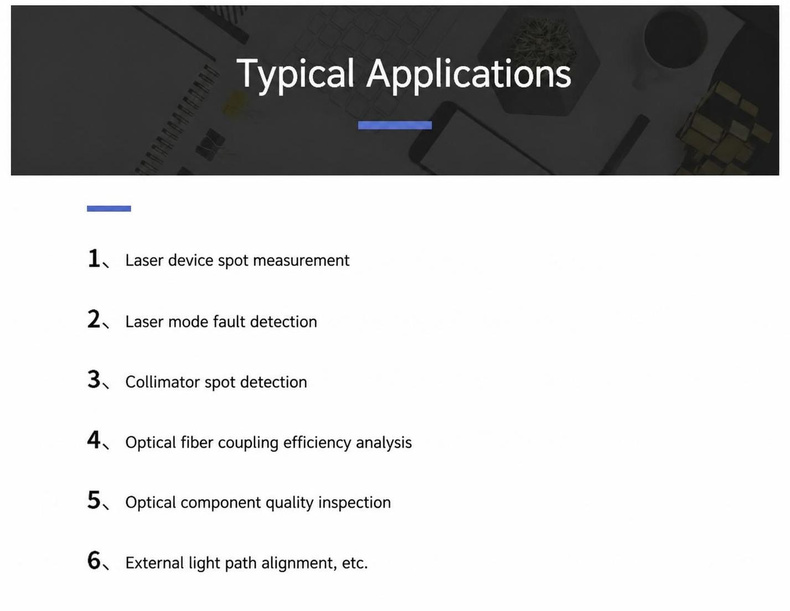

Typical Applications

Laser spot measurement

Defect detection of laser spot patterns

Collimator spot inspection

Fiber alignment coupling analysis

Optical component quality inspection

External optical path alignment, etc.



Product Specifications

Model	JYCCD-87IR
Sensor Type	InGaAs
Wavelength Range	400nm-1700nm
Photosensitive Area	3.2mm × 2.56mm
Pixel Size	5.0 μm × 5.0 μm
Resolution	640×512(Primary Resolution)
Measurable Spot Size	50um-2.5mm
Maximum Frame Rate	227.7fps @ 640×512（12bit）
Power Supply	USB3 interface power supply
Typical Power Consumption	≤2.11W
Lens Mount	C interface
Dimensions	33mm × 33mm × 38mm
Weight	70g
IP Protection Rating	IP40 (when lens and cables are properly installed)
Temperature	Operating temperature: -30 ~ 60°C, Storage temperature: -30 ~ 70°C
Humidity	20% ~ 90% RH non-condensing

*The final right of interpretation of this technical specification belongs to the manufacturer.





Consult customer service to obtain detailed materials and exclusive solutions.

Tel: 400-1800-685

Email:info@gzjygd.com
